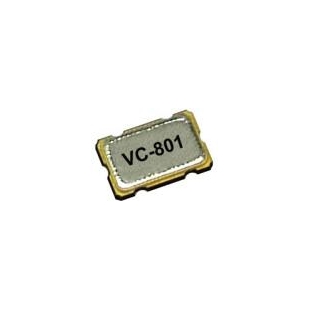

VC-801-EAF-KAAN-26M0000000TR,Microchip品牌,6G光纖通道晶振
- 頻率：26MHz
- 尺寸：5.0×3.2mm
- 應 用： Microchip晶振,VC-801有源晶振,石英晶體振蕩器,VC-801-EAF-KAAN-26M0000000TR晶振,貼片石英晶振,5032mm晶振,四腳貼片晶振,SMD晶體,頻率26MHz,電壓3.3V,工作溫度-40~105°C,頻率穩定性20ppm,高穩定性晶振,耐高溫晶振,無...
-
-
VC-801-EAF-KAAN-26M0000000TR,Microchip品牌,6G光纖通道晶振,Microchip晶振,VC-801有源晶振,石英晶體振蕩器,VC-801-EAF-KAAN-26M0000000TR晶振,貼片石英晶振,5032mm晶振,四腳貼片晶振,SMD晶體,頻率26MHz,電壓3.3V,工作溫度-40~105°C,頻率穩定性20ppm,高穩定性晶振,耐高溫晶振,無鉛環保晶振,6G光纖通道晶振,存儲區域網絡晶振,數字視頻晶振,寬帶接入晶振.

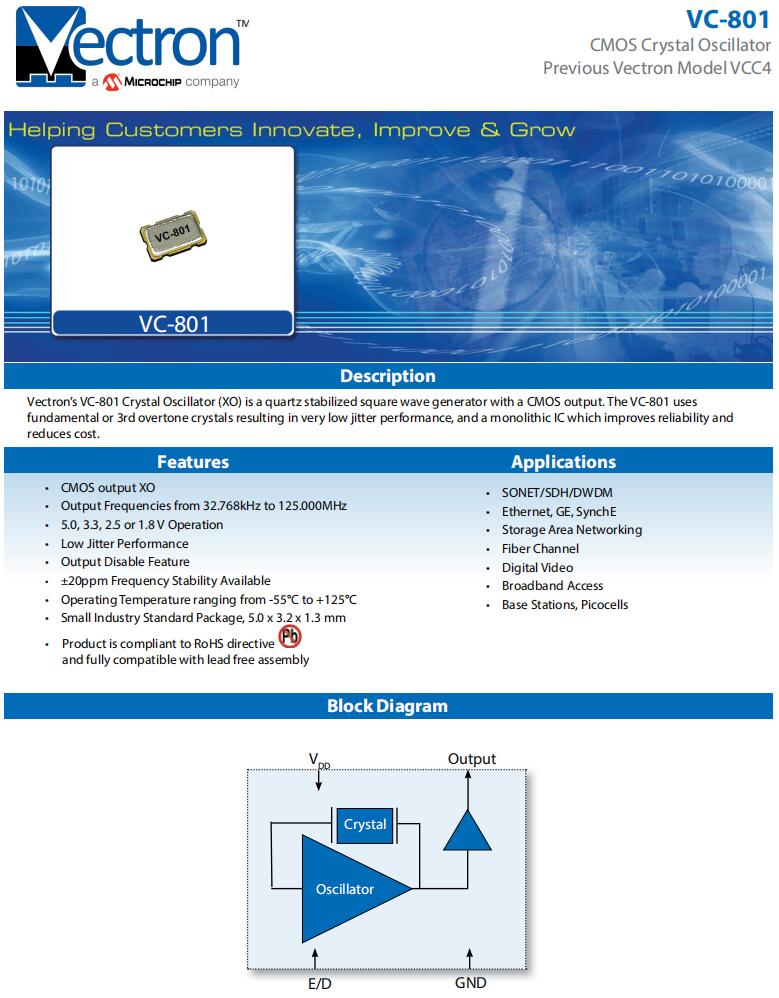

VC-801-EAF-KAAN-26M0000000TR,Microchip品牌,6G光纖通道晶振特點：
•CMOS輸出XO
•輸出頻率從32.768kHz到125.000 MHz
•5.0V,3.3 V, 2.5 V和1.8 V工作
•低抖動性能
•輸出禁用功能
•±20ppm頻率穩定性可用
•工作溫度范圍為-55℃~ 125℃
•小型工業標準包裝，5.0x3.2×1.3mm
•產品符合RoHS指令與無鉛組件完全兼容
•產品符合RoHS指令與無鉛組件完全兼容
VC-801-EAF-KAAN-26M0000000TR,Microchip品牌,6G光纖通道晶振規格表
| 項目 | 規格說明 | 條件 |
| 額定頻率 | 26MHz | 請聯系我們以便獲取其它可用頻率的相關信息 |
| 電源電壓 | 3.3V | |
| 儲存溫度 | -55℃~+150℃ | 裸存 |
| 工作溫度 | -40℃~ +105℃ | |
| 頻率穩定度 | ±50ppm | 包括由初始公差、溫度和電源電壓引起的頻率變化 |
| 老化 | ±5ppm | 1 year @ +25°C |
| 電流 | 30mA Max |
3.3V 20.001 MHz to 50.000MHz
|
| 負載 |
15pF
|
|
| 輸出邏輯電平低（Vol） | 0.1 × VDD Max | |
| 輸出邏輯電平高（Voh） | 0.9 × VDD Min | |
| 輸出上升下降時間 | 5ns Max |
20.001 MHz to 50 MHz
|
| 占空比 | 45%~55% | |
| 起始時間 | 8 ms Max | |
| 禁用時間 | 100ns Max | |
| 周期抖動 |
3.0 ps
|
RMS
|
|
RMS Jitter
|
1ps Max |
12 kHz to 20 MHz
|
.jpg)

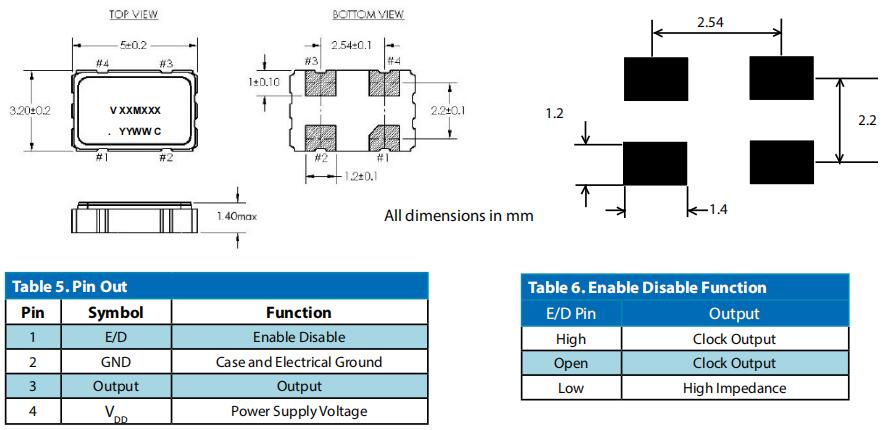

VC-801-EAF-KAAN-26M0000000TR,Microchip品牌,6G光纖通道晶振尺寸圖
.jpg)
.jpg)
.jpg)
| 原廠代碼 | 晶振品牌 | 型號 | 頻率 | 電壓 | 尺寸 |
| DSC1001CI2-027.0000 | Microchip Technology | DSC1001 | 27MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CI2-018.4320 | Microchip Technology | DSC1001 | 18.432MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CC1-047.3333 | Microchip Technology | DSC1001 | 47.3333MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001BC1-024.0000 | Microchip Technology | DSC1001 | 24MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001DI1-001.8432 | Microchip Technology | DSC1001 | 1.8432MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001CI1-027.0000 | Microchip Technology | DSC1001 | 27MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CI2-024.0000 | Microchip Technology | DSC1001 | 24MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001DI2-038.4000 | Microchip Technology | DSC1001 | 38.4MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001CI5-033.3333 | Microchip Technology | DSC1001 | 33.3333MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001DE5-018.4320 | Microchip Technology | DSC1001 | 18.432MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001CI2-066.6666B | Microchip Technology | DSC1001 | 66.6666MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CI2-066.6666B | Microchip Technology | DSC1001 | 66.6666MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CI2-066.6666B | Microchip Technology | DSC1001 | 66.6666MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001DI1-026.0000T | Microchip Technology | DSC1001 | 26MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DI1-026.0000T | Microchip Technology | DSC1001 | 26MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DI1-026.0000T | Microchip Technology | DSC1001 | 26MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DI2-004.0960T | Microchip Technology | DSC1001 | 4.096MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DI2-004.0960T | Microchip Technology | DSC1001 | 4.096MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DI2-004.0960T | Microchip Technology | DSC1001 | 4.096MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DL5-020.0000T | Microchip Technology | DSC1001 | 20MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DL5-020.0000T | Microchip Technology | DSC1001 | 20MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DL5-020.0000T | Microchip Technology | DSC1001 | 20MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DL5-024.0000T | Microchip Technology | DSC1001 | 24MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DL5-024.0000T | Microchip Technology | DSC1001 | 24MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DL5-024.0000T | Microchip Technology | DSC1001 | 24MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DL5-075.0000 | Microchip Technology | DSC1001 | 75MHz | 1.7 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DL5-133.3330 | Microchip Technology | DSC1001 | 133.333MHz | 1.7 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DI5-080.0000 | Microchip Technology | DSC1001 | 80MHz | 1.7 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001CL2-012.0000 | Microchip Technology | DSC1001 | 12MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001DI1-050.0000 | Microchip Technology | DSC1001 | 50MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DI1-024.0000 | Microchip Technology | DSC1001 | 24MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DI1-025.0000 | Microchip Technology | DSC1001 | 25MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001CI2-033.3300 | Microchip Technology | DSC1001 | 33.33MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001DI5-100.0000 | Microchip Technology | DSC1001 | 100MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DL5-025.0000 | Microchip Technology | DSC1001 | 25MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001CE2-006.0000 | Microchip Technology | DSC1001 | 6MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CI1-050.0000 | Microchip Technology | DSC1001 | 50MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CI2-012.0000 | Microchip Technology | DSC1001 | 12MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CI2-033.3333 | Microchip Technology | DSC1001 | 33.3333MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CI5-004.9152 | Microchip Technology | DSC1001 | 4.9152MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CI1-048.0000 | Microchip Technology | DSC1001 | 48MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CI1-026.0000 | Microchip Technology | DSC1001 | 26MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001AI2-050.0000 | Microchip Technology | DSC1001 | 50MHz | 1.8 V ~ 3.3 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001AL2-027.0000 | Microchip Technology | DSC1001 | 27MHz | 1.8 V ~ 3.3 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001CC1-008.0000 | Microchip Technology | DSC1001 | 8MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CE1-066.6666 | Microchip Technology | DSC1001 | 66.6666MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CE1-019.2000 | Microchip Technology | DSC1001 | 19.2MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001DI1-004.9152 | Microchip Technology | DSC1001 | 4.9152MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001AC1-027.0000 | Microchip Technology | DSC1001 | 27MHz | 1.8 V ~ 3.3 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001AC1-008.0000 | Microchip Technology | DSC1001 | 8MHz | 1.7 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001DI1-012.0000 | Microchip Technology | DSC1001 | 12MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DI1-048.0000 | Microchip Technology | DSC1001 | 48MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DI1-020.0000 | Microchip Technology | DSC1001 | 20MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001CI1-025.0000 | Microchip Technology | DSC1001 | 25MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001DI1-032.0000 | Microchip Technology | DSC1001 | 32MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001AE1-027.0000 | Microchip Technology | DSC1001 | 27MHz | 1.8 V ~ 3.3 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001AE1-014.3182 | Microchip Technology | DSC1001 | 14.3182MHz | 1.8 V ~ 3.3 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001AE1-024.5761 | Microchip Technology | DSC1001 | 24.5761MHz | 1.8 V ~ 3.3 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001AE1-054.0000 | Microchip Technology | DSC1001 | 54MHz | 1.8 V ~ 3.3 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001AE1-003.6864 | Microchip Technology | DSC1001 | 3.6864MHz | 1.8 V ~ 3.3 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001BE2-010.0000 | Microchip Technology | DSC1001 | 10MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001AE1-055.0000 | Microchip Technology | DSC1001 | 55MHz | 1.8 V ~ 3.3 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001CI1-003.6864 | Microchip Technology | DSC1001 | 3.6864MHz | 1.7 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001DI1-038.4000 | Microchip Technology | DSC1001 | 38.4MHz | 1.7 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001AI2-064.0000 | Microchip Technology | DSC1001 | 64MHz | 1.8 V ~ 3.3 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001BI1-048.0000 | Microchip Technology | DSC1001 | 48MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001CI2-001.9521 | Microchip Technology | DSC1001 | 1.9521MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CI2-010.4857 | Microchip Technology | DSC1001 | 10.4857MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CI2-008.1920 | Microchip Technology | DSC1001 | 8.192MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001AI1-033.0000 | Microchip Technology | DSC1001 | 33MHz | 1.8 V ~ 3.3 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001BI1-010.0000 | Microchip Technology | DSC1001 | 10MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI1-020.0000 | Microchip Technology | DSC1001 | 20MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI1-024.5760 | Microchip Technology | DSC1001 | 24.576MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI1-027.0000 | Microchip Technology | DSC1001 | 27MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI2-014.3181 | Microchip Technology | DSC1001 | 14.3181MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI2-014.7456 | Microchip Technology | DSC1001 | 14.7456MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI2-016.3840 | Microchip Technology | DSC1001 | 16.384MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI2-040.0000 | Microchip Technology | DSC1001 | 40MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001AI2-001.0000 | Microchip Technology | DSC1001 | 1MHz | 1.8 V ~ 3.3 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001BI1-024.0000 | Microchip Technology | DSC1001 | 24MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI1-025.0000 | Microchip Technology | DSC1001 | 25MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI2-012.5000 | Microchip Technology | DSC1001 | 12.5MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI1-040.0000 | Microchip Technology | DSC1001 | 40MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI1-050.0000 | Microchip Technology | DSC1001 | 50MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI2-024.5760 | Microchip Technology | DSC1001 | 24.576MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI2-005.5296 | Microchip Technology | DSC1001 | 5.5296MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001CI2-049.1520 | Microchip Technology | DSC1001 | 49.152MHz | 1.7 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001BI2-025.0000 | Microchip Technology | DSC1001 | 25MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001CI2-025.0000 | Microchip Technology | DSC1001 | 25MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CE2-012.0000 | Microchip Technology | DSC1001 | 12MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001DI2-045.1584 | Microchip Technology | DSC1001 | 45.1584MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DI2-049.1520 | Microchip Technology | DSC1001 | 49.152MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DI2-011.0592 | Microchip Technology | DSC1001 | 11.0592MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001AE2-002.0480 | Microchip Technology | DSC1001 | 2.048MHz | 1.8 V ~ 3.3 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001CI2-001.9512 | Microchip Technology | DSC1001 | 1.9512MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CI2-033.3330 | Microchip Technology | DSC1001 | 33.333MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001DL1-025.2000 | Microchip Technology | DSC1001 | 25.2MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001BI2-004.0000 | Microchip Technology | DSC1001 | 4MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI2-010.0000 | Microchip Technology | DSC1001 | 10MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI2-013.0810 | Microchip Technology | DSC1001 | 13.081MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI2-054.0000 | Microchip Technology | DSC1001 | 54MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001AI2-011.7000 | Microchip Technology | DSC1001 | 11.7MHz | 1.8 V ~ 3.3 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001AI2-012.3667 | Microchip Technology | DSC1001 | 12.3667MHz | 1.8 V ~ 3.3 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001CL1-016.0000 | Microchip Technology | DSC1001 | 16MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CL1-033.3333 | Microchip Technology | DSC1001 | 33.3333MHz | 1.7 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001BI2-012.2888 | Microchip Technology | DSC1001 | 12.2888MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001CI2-150.0000 | Microchip Technology | DSC1001 | 150MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001BL1-060.0000 | Microchip Technology | DSC1001 | 60MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001DI2-005.0196 | Microchip Technology | DSC1001 | 5.0196MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001CI5-019.2000 | Microchip Technology | DSC1001 | 19.2MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CI5-009.6000 | Microchip Technology | DSC1001 | 9.6MHz | 1.7 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CI5-009.7280 | Microchip Technology | DSC1001 | 9.728MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001DL2-016.0000 | Microchip Technology | DSC1001 | 16MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001CI5-016.3840 | Microchip Technology | DSC1001 | 16.384MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001BE1-125.0000 | Microchip Technology | DSC1001 | 125MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001CI5-060.0000 | Microchip Technology | DSC1001 | 60MHz | 1.7 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001DI1-012.8000 | Microchip Technology | DSC1001 | 12.8MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DI2-028.6363 | Microchip Technology | DSC1001 | 28.6363MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001CI5-026.0000 | Microchip Technology | DSC1001 | 26MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001DI2-031.2500 | Microchip Technology | DSC1001 | 31.25MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DI2-037.1250 | Microchip Technology | DSC1001 | 37.125MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001CI5-032.0000 | Microchip Technology | DSC1001 | 32MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001DI2-024.0000 | Microchip Technology | DSC1001 | 24MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DI2-050.0000 | Microchip Technology | DSC1001 | 50MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DI2-029.5000 | Microchip Technology | DSC1001 | 29.5MHz | 1.7 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DI2-027.0000 | Microchip Technology | DSC1001 | 27MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001CL2-030.0000 | Microchip Technology | DSC1001 | 30MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001BL2-020.0000 | Microchip Technology | DSC1001 | 20MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001AE1-111.0000 | Microchip Technology | DSC1001 | 111MHz | 1.8 V ~ 3.3 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001CL5-014.3181 | Microchip Technology | DSC1001 | 14.318MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CL5-010.0000 | Microchip Technology | DSC1001 | 10MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001AI2-096.0000 | Microchip Technology | DSC1001 | 96MHz | 1.8 V ~ 3.3 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001AI2-100.0000 | Microchip Technology | DSC1001 | 100MHz | 1.8 V ~ 3.3 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001BI2-125.0000 | Microchip Technology | DSC1001 | 125MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001CI5-024.3050 | Microchip Technology | DSC1001 | 24.305MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CI5-033.3300 | Microchip Technology | DSC1001 | 33.33MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001AE5-040.0000 | Microchip Technology | DSC1001 | 40MHz | 1.8 V ~ 3.3 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001BE5-064.0000 | Microchip Technology | DSC1001 | 64MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001DL2-030.0000 | Microchip Technology | DSC1001 | 30MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DL2-027.0000 | Microchip Technology | DSC1001 | 27MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DL2-013.5000 | Microchip Technology | DSC1001 | 13.5MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001AI5-027.0000 | Microchip Technology | DSC1001 | 27MHz | 1.7 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001AI5-033.0000 | Microchip Technology | DSC1001 | 33MHz | 1.8 V ~ 3.3 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001BI5-013.5600 | Microchip Technology | DSC1001 | 13.56MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI5-040.0000 | Microchip Technology | DSC1001 | 40MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001CE5-148.0000 | Microchip Technology | DSC1001 | 148MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001DL2-037.1250 | Microchip Technology | DSC1001 | 37.125MHz | 1.7 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001AI5-040.0000 | Microchip Technology | DSC1001 | 40MHz | 1.8 V ~ 3.3 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001DI2-100.0000 | Microchip Technology | DSC1001 | 100MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DL5-040.0000 | Microchip Technology | DSC1001 | 40MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001BL5-010.0000 | Microchip Technology | DSC1001 | 10MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001AL5-033.0000 | Microchip Technology | DSC1001 | 33MHz | 1.8 V ~ 3.3 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001AL5-048.0000 | Microchip Technology | DSC1001 | 48MHz | 1.8 V ~ 3.3 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001AL5-060.0000 | Microchip Technology | DSC1001 | 60MHz | 1.8 V ~ 3.3 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001AL5-040.0000 | Microchip Technology | DSC1001 | 40MHz | 1.8 V ~ 3.3 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001AL5-033.3333 | Microchip Technology | DSC1001 | 33.3333MHz | 1.8 V ~ 3.3 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001AL5-024.0000 | Microchip Technology | DSC1001 | 24MHz | 1.8 V ~ 3.3 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001AL5-050.0000 | Microchip Technology | DSC1001 | 50MHz | 1.8 V ~ 3.3 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001BL5-016.0000 | Microchip Technology | DSC1001 | 16MHz | 1.7 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001AL5-027.0000 | Microchip Technology | DSC1001 | 27MHz | 1.8 V ~ 3.3 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001BL5-064.0000 | Microchip Technology | DSC1001 | 64MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BL5-095.0000 | Microchip Technology | DSC1001 | 95MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI5-090.0000 | Microchip Technology | DSC1001 | 90MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001DI5-026.0000 | Microchip Technology | DSC1001 | 26MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DI5-047.3385 | Microchip Technology | DSC1001 | 47.3385MHz | 1.7 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DI5-047.3885 | Microchip Technology | DSC1001 | 47.3885MHz | 1.7 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DL2-074.2500 | Microchip Technology | DSC1001 | 74.25MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DI5-024.5760 | Microchip Technology | DSC1001 | 24.576MHz | 1.7 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DI5-016.0000 | Microchip Technology | DSC1001 | 16MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DI5-019.2000 | Microchip Technology | DSC1001 | 19.2MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DI5-025.0000 | Microchip Technology | DSC1001 | 25MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001AL5-100.0000 | Microchip Technology | DSC1001 | 100MHz | 1.8 V ~ 3.3 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001CE1-022.1184 | Microchip Technology | DSC1001 | 22.1184MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001DL5-050.0000 | Microchip Technology | DSC1001 | 50MHz | 1.7 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DL2-087.0655 | Microchip Technology | DSC1001 | 87.0655MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DL5-030.0000 | Microchip Technology | DSC1001 | 30MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DL5-012.0000 | Microchip Technology | DSC1001 | 12MHz | 1.7 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DL5-026.0000 | Microchip Technology | DSC1001 | 26MHz | 1.7 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DL5-027.0000 | Microchip Technology | DSC1001 | 27MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DL1-080.0000 | Microchip Technology | DSC1001 | 80MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DL5-125.0000 | Microchip Technology | DSC1001 | 125MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1121CI1-024.0000T | Microchip Technology | DSC1001 | 24MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1121CI1-024.0000T | Microchip Technology | DSC1001 | 24MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CI2-108.0000 | Microchip Technology | DSC1001 | 108MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CI1-024.0000T | Microchip Technology | DSC1001 | 24MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CI1-024.0000T | Microchip Technology | DSC1001 | 24MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CC1-027.0000 | Microchip Technology | DSC1001 | 27MHz | 1.7 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001DE1-050.0000 | Microchip Technology | DSC1001 | 50MHz | 1.7 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DE1-025.0000 | Microchip Technology | DSC1001 | 25MHz | 1.7 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001CE1-024.0000 | Microchip Technology | DSC1001 | 24MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001BC1-020.0000 | Microchip Technology | DSC1001 | 20MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001CI1-024.0000T | Microchip Technology | DSC1001 | 24MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CI1-024.0000T | Microchip Technology | DSC1001 | 24MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CI1-016.0000 | Microchip Technology | DSC1001 | 16MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CI1-008.0000 | Microchip Technology | DSC1001 | 8MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CE2-022.5792 | Microchip Technology | DSC1001 | 22.5792MHz | 1.7 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CI1-033.3330 | Microchip Technology | DSC1001 | 33.333MHz | 1.7 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CE2-003.5800 | Microchip Technology | DSC1001 | 3.58MHz | 1.7 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001DI1-018.4320 | Microchip Technology | DSC1001 | 18.432MHz | 1.7 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DI1-030.0000 | Microchip Technology | DSC1001 | 30MHz | 1.7 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DI1-066.0000 | Microchip Technology | DSC1001 | 66MHz | 1.7 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001CI1-033.0000 | Microchip Technology | DSC1001 | 33MHz | 1.7 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001DI1-033.0000 | Microchip Technology | DSC1001 | 33MHz | 1.7 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DI1-027.0000 | Microchip Technology | DSC1001 | 27MHz | 1.7 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001AE1-006.1440 | Microchip Technology | DSC1001 | 6.144MHz | 1.7 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001BI1-004.0000 | Microchip Technology | DSC1001 | 4MHz | 1.7 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001AE1-019.6608 | Microchip Technology | DSC1001 | 19.6608MHz | 1.7 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001CI2-031.2500 | Microchip Technology | DSC1001 | 31.25MHz | 1.7 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001AI1-055.3330 | Microchip Technology | DSC1001 | 55.333MHz | 1.7 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001AI2-066.6670 | Microchip Technology | DSC1001 | 66.667MHz | 1.7 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001AI2-010.0000 | Microchip Technology | DSC1001 | 10MHz | 1.7 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001BI1-033.3330 | Microchip Technology | DSC1001 | 33.333MHz | 1.7 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI2-006.0000 | Microchip Technology | DSC1001 | 6MHz | 1.7 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI2-030.0000 | Microchip Technology | DSC1001 | 30MHz | 1.7 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI2-026.0000 | Microchip Technology | DSC1001 | 26MHz | 1.7 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI2-033.0000 | Microchip Technology | DSC1001 | 33MHz | 1.7 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI2-018.4320 | Microchip Technology | DSC1001 | 18.432MHz | 1.7 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001CI2-012.5000 | Microchip Technology | DSC1001 | 12.5MHz | 1.7 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CI2-030.0000 | Microchip Technology | DSC1001 | 30MHz | 1.7 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CI2-006.0000 | Microchip Technology | DSC1001 | 6MHz | 1.7 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CI2-011.0592 | Microchip Technology | DSC1001 | 11.0592MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001BI2-012.0000 | Microchip Technology | DSC1001 | 12MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI2-050.0000 | Microchip Technology | DSC1001 | 50MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001CI2-008.0000 | Microchip Technology | DSC1001 | 8MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001AI2-054.0000 | Microchip Technology | DSC1001 | 54MHz | 1.8 V ~ 3.3 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001BI1-008.0000 | Microchip Technology | DSC1001 | 8MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001DE1-075.0000 | Microchip Technology | DSC1001 | 75MHz | 1.7 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DC5-012.8000 | Microchip Technology | DSC1001 | 12.8MHz | 1.7 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001CL1-048.0000 | Microchip Technology | DSC1001 | 48MHz | 1.7 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CL1-001.8432 | Microchip Technology | DSC1001 | 1.8432MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001BL1-016.0000 | Microchip Technology | DSC1001 | 16MHz | 1.7 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001CL1-020.0000T | Microchip Technology | DSC1001 | 20MHz | 1.7 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CL1-020.0000T | Microchip Technology | DSC1001 | 20MHz | 1.7 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CL1-020.0000T | Microchip Technology | DSC1001 | 20MHz | 1.7 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001DI2-014.7456T | Microchip Technology | DSC1001 | 14.7456MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DI2-014.7456T | Microchip Technology | DSC1001 | 14.7456MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DI2-014.7456T | Microchip Technology | DSC1001 | 14.7456MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001CI5-044.0000 | Microchip Technology | DSC1001 | 44MHz | 1.7 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CI5-011.0592 | Microchip Technology | DSC1001 | 11.0592MHz | 1.7 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001DI2-030.0000 | Microchip Technology | DSC1001 | 30MHz | 1.7 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DI2-047.3885 | Microchip Technology | DSC1001 | 47.3885MHz | 1.7 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DI2-066.0000 | Microchip Technology | DSC1001 | 66MHz | 1.7 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DI2-024.5454 | Microchip Technology | DSC1001 | 24.5454MHz | 1.7 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DI1-074.2500 | Microchip Technology | DSC1001 | 74.25MHz | 1.7 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DI2-024.5455 | Microchip Technology | DSC1001 | 24.5455MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DI2-014.7456 | Microchip Technology | DSC1001 | 14.7456MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DI2-008.0000 | Microchip Technology | DSC1001 | 8MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001CI5-010.0000 | Microchip Technology | DSC1001 | 10MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001BI1-100.0000 | Microchip Technology | DSC1001 | 100MHz | 1.7 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI2-133.3330T | Microchip Technology | DSC1001 | 133.333MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI2-133.3330T | Microchip Technology | DSC1001 | 133.333MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI2-133.3330T | Microchip Technology | DSC1001 | 133.333MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001CL5-114.0000 | Microchip Technology | DSC1001 | 114MHz | 1.7 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CL5-033.0000 | Microchip Technology | DSC1001 | 33MHz | 1.7 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CL5-060.0000 | Microchip Technology | DSC1001 | 60MHz | 1.7 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CL5-050.0000T | Microchip Technology | DSC1001 | 50MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CL5-050.0000T | Microchip Technology | DSC1001 | 50MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CL5-050.0000T | Microchip Technology | DSC1001 | 50MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CL5-014.7456 | Microchip Technology | DSC1001 | 14.7456MHz | 1.7 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001DL1-033.3333 | Microchip Technology | DSC1001 | 33.3333MHz | 1.7 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001AI2-016.3840 | Microchip Technology | DSC1001 | 16.384MHz | 1.8 V ~ 3.3 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001CI2-036.0000 | Microchip Technology | DSC1001 | 36MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001AI5-012.0000 | Microchip Technology | DSC1001 | 12MHz | 1.7 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001AI5-032.0000 | Microchip Technology | DSC1001 | 32MHz | 1.7 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001AI5-048.0000 | Microchip Technology | DSC1001 | 48MHz | 1.7 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001AI5-033.3330 | Microchip Technology | DSC1001 | 33.333MHz | 1.7 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001BI5-008.0000 | Microchip Technology | DSC1001 | 8MHz | 1.7 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001CE5-148.5000 | Microchip Technology | DSC1001 | 148.5MHz | 1.7 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001BI5-020.0000 | Microchip Technology | DSC1001 | 20MHz | 1.7 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001AI5-029.4912 | Microchip Technology | DSC1001 | 29.4912MHz | 1.7 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001BI5-010.0000 | Microchip Technology | DSC1001 | 10MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001AC2-125.0025 | Microchip Technology | DSC1001 | 125.0025MHz | 1.8 V ~ 3.3 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001AL5-001.8432 | Microchip Technology | DSC1001 | 1.8432MHz | 1.7 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001AL5-008.0000 | Microchip Technology | DSC1001 | 8MHz | 1.7 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001BL5-050.0000 | Microchip Technology | DSC1001 | 50MHz | 1.7 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001AL5-004.0000 | Microchip Technology | DSC1001 | 4MHz | 1.7 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001BI5-133.3330 | Microchip Technology | DSC1001 | 133.333MHz | 1.7 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001AI5-080.0000 | Microchip Technology | DSC1001 | 80MHz | 1.7 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001AI5-125.0060 | Microchip Technology | DSC1001 | 125.006MHz | 1.7 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001AI5-100.0000 | Microchip Technology | DSC1001 | 100MHz | 1.7 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001DI5-048.0000 | Microchip Technology | DSC1001 | 48MHz | 1.7 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DI5-004.0000 | Microchip Technology | DSC1001 | 4MHz | 1.7 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DI5-018.4320 | Microchip Technology | DSC1001 | 18.432MHz | 1.7 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DI5-044.0000 | Microchip Technology | DSC1001 | 44MHz | 1.7 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DI5-060.0000 | Microchip Technology | DSC1001 | 60MHz | 1.7 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DI5-001.8432 | Microchip Technology | DSC1001 | 1.8432MHz | 1.7 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DI5-010.0000 | Microchip Technology | DSC1001 | 10MHz | 1.7 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DI5-050.0000 | Microchip Technology | DSC1001 | 50MHz | 1.7 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DI5-013.3333 | Microchip Technology | DSC1001 | 13.3333MHz | 1.7 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DL2-150.0000 | Microchip Technology | DSC1001 | 150MHz | 1.7 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DI5-022.5792 | Microchip Technology | DSC1001 | 22.5792MHz | 1.7 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DI5-008.0000 | Microchip Technology | DSC1001 | 8MHz | 1.7 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DI5-024.0000 | Microchip Technology | DSC1001 | 24MHz | 1.7 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DL5-010.2000 | Microchip Technology | DSC1001 | 10.2MHz | 1.7 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DL5-004.0000 | Microchip Technology | DSC1001 | 4MHz | 1.7 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DL5-010.0000 | Microchip Technology | DSC1001 | 10MHz | 1.7 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DL5-019.2000 | Microchip Technology | DSC1001 | 19.2MHz | 1.7 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DL5-033.0000 | Microchip Technology | DSC1001 | 33MHz | 1.7 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DL5-032.0000 | Microchip Technology | DSC1001 | 32MHz | 1.7 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DL2-090.0000 | Microchip Technology | DSC1001 | 90MHz | 1.7 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DL5-048.0000 | Microchip Technology | DSC1001 | 48MHz | 1.7 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DI1-054.0000 | Microchip Technology | DSC1001 | 54MHz | 1.7 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DL5-100.0000T | Microchip Technology | DSC1001 | 100MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DL5-100.0000T | Microchip Technology | DSC1001 | 100MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DL5-100.0000T | Microchip Technology | DSC1001 | 100MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DL5-100.0000 | Microchip Technology | DSC1001 | 100MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DI5-133.3330 | Microchip Technology | DSC1001 | 133.333MHz | 1.7 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001CI5-024.0000 | Microchip Technology | DSC1001 | 24MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001DI2-004.0000 | Microchip Technology | DSC1001 | 4MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001BL2-050.0000 | Microchip Technology | DSC1001 | 50MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001DI2-025.0000 | Microchip Technology | DSC1001 | 25MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001CI2-108.0000T | Microchip Technology | DSC1001 | 108MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CL2-024.0000T | Microchip Technology | DSC1001 | 24MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CL2-025.0000T | Microchip Technology | DSC1001 | 25MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CL2-027.0000T | Microchip Technology | DSC1001 | 27MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CL2-033.3000T | Microchip Technology | DSC1001 | 33.3MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001DC1-025.0000T | Microchip Technology | DSC1001 | 25MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DC1-050.0000T | Microchip Technology | DSC1001 | 50MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DI2-001.8432T | Microchip Technology | DSC1001 | 1.8432MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001CL2-024.0000 | Microchip Technology | DSC1001 | 24MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CL2-025.0000 | Microchip Technology | DSC1001 | 25MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CL2-027.0000 | Microchip Technology | DSC1001 | 27MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001DC1-025.0000 | Microchip Technology | DSC1001 | 25MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DC1-050.0000 | Microchip Technology | DSC1001 | 50MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001CL2-050.0000T | Microchip Technology | DSC1001 | 50MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CL2-009.5290 | Microchip Technology | DSC1001 | 9.529MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CL2-033.3333 | Microchip Technology | DSC1001 | 33.3333MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CL2-050.0000 | Microchip Technology | DSC1001 | 50MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001DC1-004.9152 | Microchip Technology | DSC1001 | 4.9152MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DC1-027.0000 | Microchip Technology | DSC1001 | 27MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001CL2-004.0000T | Microchip Technology | DSC1001 | 4MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CL2-020.0000 | Microchip Technology | DSC1001 | 20MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CL2-022.5972 | Microchip Technology | DSC1001 | 22.5972MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CL2-037.1250 | Microchip Technology | DSC1001 | 37.125MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CC1-010.0000T | Microchip Technology | DSC1001 | 10MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001DE1-012.0000T | Microchip Technology | DSC1001 | 12MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DE1-024.0000T | Microchip Technology | DSC1001 | 24MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DE1-025.0000T | Microchip Technology | DSC1001 | 25MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DE1-026.0000T | Microchip Technology | DSC1001 | 26MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DE1-033.3333T | Microchip Technology | DSC1001 | 33.3333MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DE1-040.0000T | Microchip Technology | DSC1001 | 40MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DE1-050.0000T | Microchip Technology | DSC1001 | 50MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DE1-054.0000T | Microchip Technology | DSC1001 | 54MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DE2-024.0000T | Microchip Technology | DSC1001 | 24MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DE2-050.0000T | Microchip Technology | DSC1001 | 50MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001CC1-025.0000 | Microchip Technology | DSC1001 | 25MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001DE1-024.0000 | Microchip Technology | DSC1001 | 24MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DE1-027.0000 | Microchip Technology | DSC1001 | 27MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DE1-033.3333 | Microchip Technology | DSC1001 | 33.3333MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DE1-040.0000 | Microchip Technology | DSC1001 | 40MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DE2-016.0000 | Microchip Technology | DSC1001 | 16MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DE2-032.0000 | Microchip Technology | DSC1001 | 32MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001CC1-047.3333T | Microchip Technology | DSC1001 | 47.3333MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001DC2-004.9152 | Microchip Technology | DSC1001 | 4.9152MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DC2-025.0000 | Microchip Technology | DSC1001 | 25MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DC2-027.0000 | Microchip Technology | DSC1001 | 27MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DE1-019.6608 | Microchip Technology | DSC1001 | 19.6608MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DE1-048.0000 | Microchip Technology | DSC1001 | 48MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001CC1-024.0000 | Microchip Technology | DSC1001 | 24MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CC1-040.0000 | Microchip Technology | DSC1001 | 40MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001DE1-018.4320 | Microchip Technology | DSC1001 | 18.432MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DE2-020.0000T | Microchip Technology | DSC1001 | 20MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001CC1-008.0000T | Microchip Technology | DSC1001 | 8MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001AE5-024.5760 | Microchip Technology | DSC1001 | 24.576MHz | 1.8 V ~ 3.3 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001AE5-024.5760T | Microchip Technology | DSC1001 | 24.576MHz | 1.8 V ~ 3.3 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001CC2-024.0000 | Microchip Technology | DSC1001 | 24MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CC2-024.0000T | Microchip Technology | DSC1001 | 24MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CC2-033.0000 | Microchip Technology | DSC1001 | 33MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CC2-033.0000T | Microchip Technology | DSC1001 | 33MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CE1-012.2880 | Microchip Technology | DSC1001 | 12.288MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CE1-024.5760 | Microchip Technology | DSC1001 | 24.576MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CE1-024.5760T | Microchip Technology | DSC1001 | 24.576MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001AC1-008.0000T | Microchip Technology | DSC1001 | 8MHz | 1.8 V ~ 3.3 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001BC1-020.0000T | Microchip Technology | DSC1001 | 20MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BC1-024.0000T | Microchip Technology | DSC1001 | 24MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001CC2-025.0000T | Microchip Technology | DSC1001 | 25MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CE1-006.0000T | Microchip Technology | DSC1001 | 6MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CE1-012.0000T | Microchip Technology | DSC1001 | 12MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CE1-012.2880T | Microchip Technology | DSC1001 | 12.288MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CE1-015.3600T | Microchip Technology | DSC1001 | 15.36MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CE1-016.5000T | Microchip Technology | DSC1001 | 16.5MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CE1-020.0000T | Microchip Technology | DSC1001 | 20MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CE1-020.8300T | Microchip Technology | DSC1001 | 20.83MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CE1-024.0000T | Microchip Technology | DSC1001 | 24MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CE1-025.0000T | Microchip Technology | DSC1001 | 25MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CE1-027.0000T | Microchip Technology | DSC1001 | 27MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CE1-048.0000T | Microchip Technology | DSC1001 | 48MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CC2-012.5000 | Microchip Technology | DSC1001 | 12.5MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CC2-025.0000 | Microchip Technology | DSC1001 | 25MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CC2-050.0000 | Microchip Technology | DSC1001 | 50MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CE1-004.0000 | Microchip Technology | DSC1001 | 4MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CE1-025.0000 | Microchip Technology | DSC1001 | 25MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CE1-027.0000 | Microchip Technology | DSC1001 | 27MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CE1-037.1250 | Microchip Technology | DSC1001 | 37.125MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CE1-014.3182T | Microchip Technology | DSC1001 | 14.3182MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CE1-069.2480T | Microchip Technology | DSC1001 | 69.248MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001AC1-024.0000 | Microchip Technology | DSC1001 | 24MHz | 1.8 V ~ 3.3 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001AC1-033.3333 | Microchip Technology | DSC1001 | 33.3333MHz | 1.8 V ~ 3.3 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001AC1-040.0000 | Microchip Technology | DSC1001 | 40MHz | 1.8 V ~ 3.3 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001CE1-014.3182 | Microchip Technology | DSC1001 | 14.3182MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CE1-019.6608 | Microchip Technology | DSC1001 | 19.6608MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CE1-064.8000 | Microchip Technology | DSC1001 | 64.8MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CE1-069.2480 | Microchip Technology | DSC1001 | 69.248MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001BC1-050.0000T | Microchip Technology | DSC1001 | 50MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001CE1-033.8688 | Microchip Technology | DSC1001 | 33.8688MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CE1-060.0000 | Microchip Technology | DSC1001 | 60MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CE1-033.8688T | Microchip Technology | DSC1001 | 33.8688MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CE1-033.8688T | Microchip Technology | DSC1001 | 33.8688MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CE1-033.8688T | Microchip Technology | DSC1001 | 33.8688MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CE1-019.2000T | Microchip Technology | DSC1001 | 19.2MHz | 1.7 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CE1-066.6666T | Microchip Technology | DSC1001 | 66.6666MHz | 1.7 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001DI1-004.9152T | Microchip Technology | DSC1001 | 4.9152MHz | 1.7 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001CE2-024.5760 | Microchip Technology | DSC1001 | 24.576MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CI1-024.0000 | Microchip Technology | DSC1001 | 24MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001AE1-016.6667 | Microchip Technology | DSC1001 | 16.6667MHz | 1.8 V ~ 3.3 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001AE1-016.6667T | Microchip Technology | DSC1001 | 16.6667MHz | 1.8 V ~ 3.3 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001AE1-024.0000 | Microchip Technology | DSC1001 | 24MHz | 1.8 V ~ 3.3 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001AE1-024.0000T | Microchip Technology | DSC1001 | 24MHz | 1.8 V ~ 3.3 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001AE1-033.3333T | Microchip Technology | DSC1001 | 33.3333MHz | 1.8 V ~ 3.3 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001AE1-048.0000 | Microchip Technology | DSC1001 | 48MHz | 1.8 V ~ 3.3 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001BE1-024.0000T | Microchip Technology | DSC1001 | 24MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001CE2-048.0000 | Microchip Technology | DSC1001 | 48MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001DC1-100.0000 | Microchip Technology | DSC1001 | 100MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DC1-100.0000T | Microchip Technology | DSC1001 | 100MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DI1-016.3840 | Microchip Technology | DSC1001 | 16.384MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DI1-016.3840T | Microchip Technology | DSC1001 | 16.384MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001AC2-025.0000T | Microchip Technology | DSC1001 | 25MHz | 1.8 V ~ 3.3 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001AE1-006.1440T | Microchip Technology | DSC1001 | 6.144MHz | 1.8 V ~ 3.3 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001AE1-014.3182T | Microchip Technology | DSC1001 | 14.3182MHz | 1.8 V ~ 3.3 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001AE1-025.0000T | Microchip Technology | DSC1001 | 25MHz | 1.8 V ~ 3.3 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001AE1-054.0000T | Microchip Technology | DSC1001 | 54MHz | 1.8 V ~ 3.3 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001BE1-016.0000T | Microchip Technology | DSC1001 | 16MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BE1-025.0000T | Microchip Technology | DSC1001 | 25MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BE1-048.0000T | Microchip Technology | DSC1001 | 48MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BE2-012.0000T | Microchip Technology | DSC1001 | 12MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI1-004.0000T | Microchip Technology | DSC1001 | 4MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BE1-025.0000 | Microchip Technology | DSC1001 | 25MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001CE2-022.5792T | Microchip Technology | DSC1001 | 22.5792MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CE2-024.0000T | Microchip Technology | DSC1001 | 24MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CE2-026.0000T | Microchip Technology | DSC1001 | 26MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CE2-027.0000T | Microchip Technology | DSC1001 | 27MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CE2-037.1250T | Microchip Technology | DSC1001 | 37.125MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CI1-001.8432T | Microchip Technology | DSC1001 | 1.8432MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CI1-003.6864T | Microchip Technology | DSC1001 | 3.6864MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CI1-007.5000T | Microchip Technology | DSC1001 | 7.5MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CI1-008.0000T | Microchip Technology | DSC1001 | 8MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CI1-010.0000T | Microchip Technology | DSC1001 | 10MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CI1-011.0592T | Microchip Technology | DSC1001 | 11.0592MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CI1-012.0000T | Microchip Technology | DSC1001 | 12MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CI1-014.7456T | Microchip Technology | DSC1001 | 14.7456MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CI1-016.0000T | Microchip Technology | DSC1001 | 16MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CI1-019.2000T | Microchip Technology | DSC1001 | 19.2MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CI1-020.0000T | Microchip Technology | DSC1001 | 20MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CI1-024.5760T | Microchip Technology | DSC1001 | 24.576MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CI1-025.0000T | Microchip Technology | DSC1001 | 25MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CI1-026.0000T | Microchip Technology | DSC1001 | 26MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CI1-027.0000T | Microchip Technology | DSC1001 | 27MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CI1-033.0000T | Microchip Technology | DSC1001 | 33MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CI1-033.3330T | Microchip Technology | DSC1001 | 33.333MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CI1-033.3333T | Microchip Technology | DSC1001 | 33.3333MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CI1-048.0000T | Microchip Technology | DSC1001 | 48MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CI1-050.0000T | Microchip Technology | DSC1001 | 50MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CI1-060.0000T | Microchip Technology | DSC1001 | 60MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001DI1-001.8432T | Microchip Technology | DSC1001 | 1.8432MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DI1-003.6864T | Microchip Technology | DSC1001 | 3.6864MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DI1-004.0000T | Microchip Technology | DSC1001 | 4MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DI1-005.0196T | Microchip Technology | DSC1001 | 5.0196MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DI1-008.0000T | Microchip Technology | DSC1001 | 8MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DI1-010.0000T | Microchip Technology | DSC1001 | 10MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DI1-012.0000T | Microchip Technology | DSC1001 | 12MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DI1-014.7456T | Microchip Technology | DSC1001 | 14.7456MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
.jpg)
.jpg)
SHENZHEN YIJIN ELECTRONICS CO;LTD
電話：0755-27876565
手機：18924600166
QQ：857950243
郵箱：yijindz@163.com
網站：//hikefu.cn
地址：廣東省深圳市寶安區新安107國道旁
